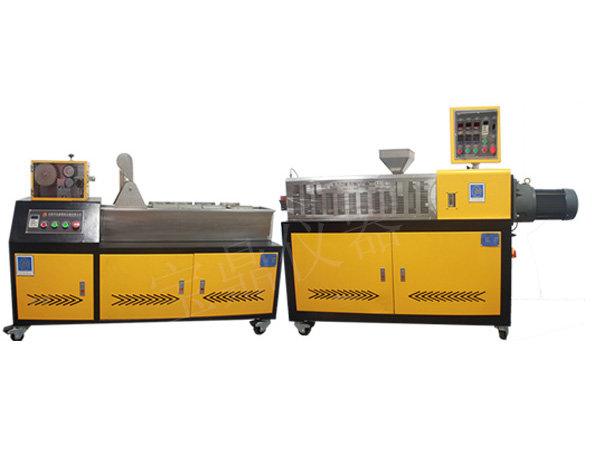

BD-8868-A双螺杆挤出切粒机组/仪表型
BD-8868-A
实验室双螺杆挤出机切粒机组/仪表型
本机适合工程塑料、改性塑胶、废旧塑胶、色母粒的混炼加工实验，具有塑化均质、着色打样、填充改性等功能。适用实验室测试和控制质量，教学研究和小规模生产，可直接挤出造粒、片材、管材等，以模拟多种生产工艺。
Introduction
BD-8868-A
Laboratory twin screw extruder pelletizing unit / instrument type
The machine is suitable for mixing and processing experiments of engineering plastics, modified plastics, waste plastics and color masterbatch. It has the functions of plasticization and homogenization, coloring and proofing, filling and modification, etc. It is suitable for laboratory testing and quality control, teaching research and small-scale production. It can directly extrude granulation, sheet and pipe to simulate a variety of production processes.
1 screw diameter: 20, 25, 30 optional
2 length diameter ratio: 40, other length diameter ratio (10~30 times) optional
3 screw steering: flat form
4 screw speed: 0-120rpm variable frequency speed regulation
5 screw: 40CrNiMo chromium molybdenum alloy with special tool steel, screw feeding, conveying section, compression section and mixing head, with hard chrome polishing, ultra precision honing process, nitriding depth 0.4-0.7mm, hardness of HRC55~60 nitride
6 barrel: double metal material, can be replaced by the hard alloy wear-resistant sleeve, according to the different functions of the multi cylinder combination
7 combination: Screw Kit for the building block type screw combination, multi cylinder combination
8 heating zones: barrel area 4 die cast aluminum heater, 2 zone heater, covered with stainless steel safety cover
9 cooling device: the barrel adopts water cooling system intact
10 drive power: 2.2KW/3.7KW/4KW gear reducer motor
- assist mechanism
1: quick change die extrusion die, a number of 2- 3 (V - shaped hollow cylindrical - shaped sheet)
2 length diameter ratio: 40, other length diameter ratio (10~30 times) optional
3 screw steering: flat form
4 screw speed: 0-120rpm variable frequency speed regulation
5 screw: 40CrNiMo chromium molybdenum alloy with special tool steel, screw feeding, conveying section, compression section and mixing head, with hard chrome polishing, ultra precision honing process, nitriding depth 0.4-0.7mm, hardness of HRC55~60 nitride
6 barrel: double metal material, can be replaced by the hard alloy wear-resistant sleeve, according to the different functions of the multi cylinder combination
7 combination: Screw Kit for the building block type screw combination, multi cylinder combination
8 heating zones: barrel area 4 die cast aluminum heater, 2 zone heater, covered with stainless steel safety cover
9 cooling device: the barrel adopts water cooling system intact
10 drive power: 2.2KW/3.7KW/4KW gear reducer motor
- assist mechanism
1: quick change die extrusion die, a number of 2- 3 (V - shaped hollow cylindrical - shaped sheet)
